Applicable material: Metal

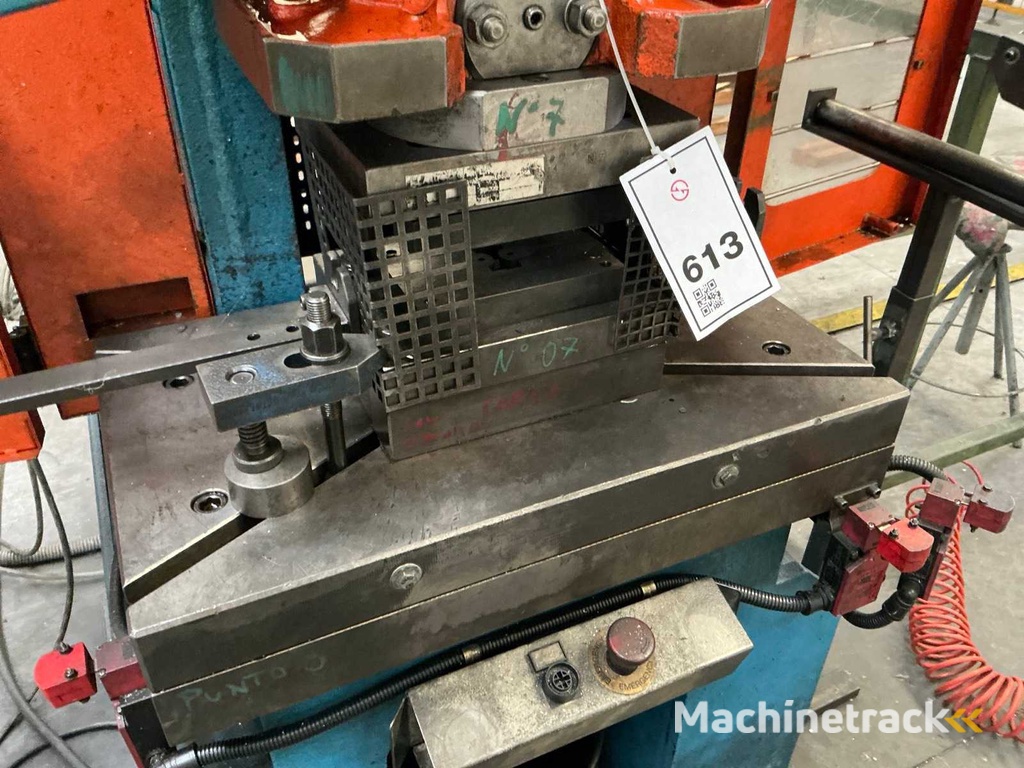

Including machining moulds of undefined quantity (not all shown in the photo, only those belonging to the machine will be delivered). <br><br>
Press table 380x650 mm<br>
Serial Number: 11655<br>
Nominal force: 400 kN<br>
Stop position: P.M.S.<br>
Adjustable Stroke: 8-78mm<br>
Hammer adjustment: 60 mm<br>
Stop Time: 110ms<br>
Safety distance (1.6 m/s): 177 mm<br>
Cycles per minute: 145<br>
Max mould surface: 300 x 500 mm<br>
Max. closed mould height: 332 mm<br>
Closed mould height min: 297 mm<br>
Upper mould mass: 40 kg<br>
Revolutions at 1st of the flywheel: 145<br>
Total installed power: 3 kW<br>
Supply voltage: 400 V<br>
Auxiliary circuit voltage: 24 V<br>
Air operating pressure: 5–6 bar<br>
Mass: 2200 kg<br><br>
The information shown is deduced or taken on board the machine and may not accurately represent the real performance of the machine. <br>
Thorough on-site inspection is recommended. <br><br>
<b>The item is sold in the state in which it is, unverified and without warranty of operation. <br>
The sale is subject to acceptance by the seller and may be subject to restrictions, in particular for goods that do not comply with EC regulations or are destined for countries to which export is necessary. <br>
IMPORTANT: Disassembly and loading on estimate.</b>
| Category | Remaining |
| Brand | Sangiacomo |
| Model | T 40 CE |
| Construction year | 2003 |
| Reference | A7-38416-613 |
